| Standard Capacities (kgf) |
100, 150, 200, 300, 500, 750, 1000, 1500 |
| Excitation Voltage |
10V DC – Maximum 15V DC |
| Nominal Output |
2.0 mV/V |
| Non-Linearity (%FSO) |
< ±0.025% |
| Hysteresis (%FSO) |
< ±0.02% |
| Non-Repeatability (%FSO) |
< ±0.01% |
| Creep (30 Minutes) (%FSO) |
< ±0.03% |
| Zero Balance (%FSO) |
±1.0% |
| Input Resistance (Ω) |
390 ± 15 |
| Output Resistance (Ω) |
350 ± 3 |
| Insulation Resistance |
> 1000 MΩ at 50V DC |
| Safe Overload (%FS) |
150% |
| Ultimate Overload (%FS) |
250% |
| Temperature Compensated Range (°C) |
0-60°C |
| Temperature Effect on Output (%FSO/°C) |
< 0.0015% |
| Temperature Effect on Zero (%FSO/°C) |
< 0.0020% |
| Platter Size |
750mm x 750mm |

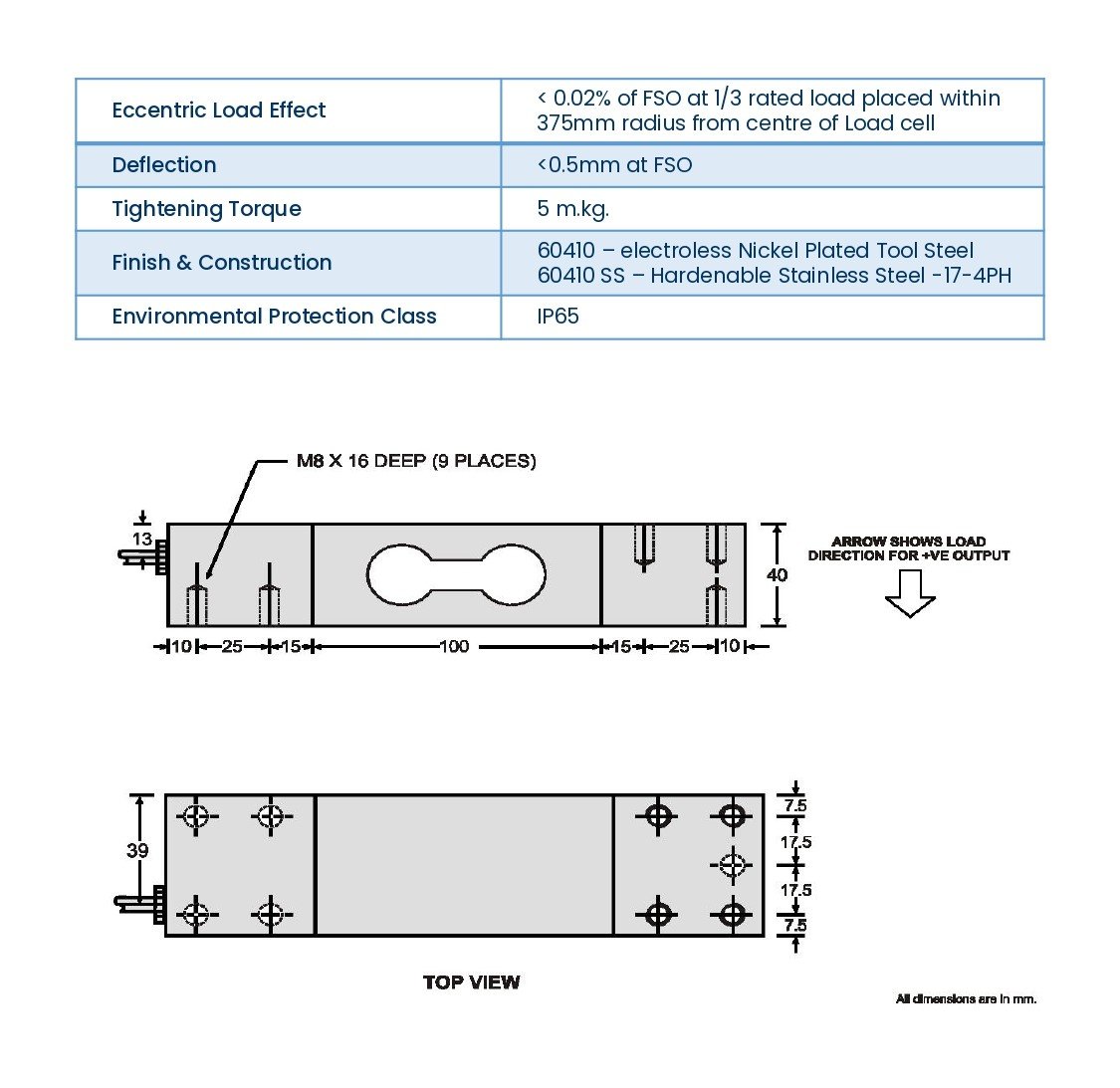

| Eccentric Load Effect |
< 0.02% of FSO at 1/3 rated load within 375mm radius |
| Deflection |
< 0.5mm at FSO |
| Tightening Torque |
5 m.kg |
| Finish & Construction |
60410 – Electroless Nickel Plated Tool Steel / 60410 SS –
Hardenable Stainless Steel 17-4PH
|
| Environmental Protection Class |
IP65 |
