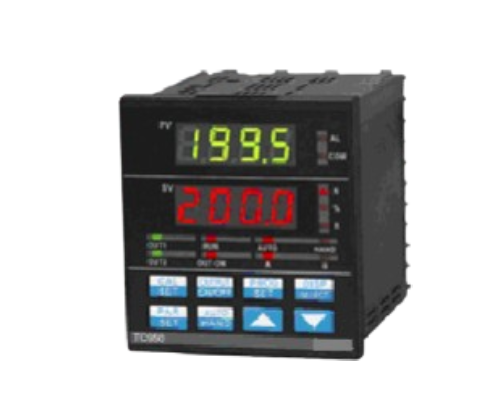

TC950 General Specification

Feature	Description
Automatic/Manual Tension Control	Yes
Control Algorithm	Advanced PID control algorithm provides high control precision
Digital Circuits	Full digital circuits, easy tension calibration
Speed Signal Input Range	0~10V
Optional Outputs	Various outputs available for different applications
Communication	RS485/RS232 serial communication
Measured Tension Transmission	Yes
Reel Exchange Function	Yes
Power Supply	85~264V
User Interface	Friendly, easy to use
Cost Efficiency	More cost-efficient solution

Technical Data

Specification	Value
Resolution	±0.2%FS ± 1 digit
Sampling Rate	100 ms
Tension Signal Input	0~50 mV
Analog Outputs	4~20mA OR 0~20mA OR 0~10V PWM
Phase-Shifting Output	Yes
Alarm	Relay, NO, Max.250VAC, 2A
Zero Tension Alarm	Yes
Control Algorithm	PID
Communications	RS232 or RS485
Power Supply	100~260VAC, 50/60 Hz
Operating Temperature	0~50°C
Relative Humidity	≤85%

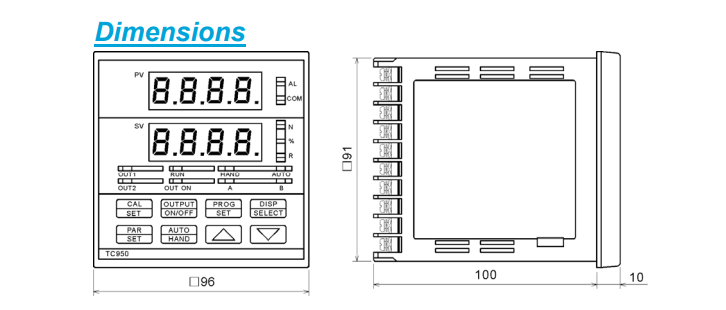

Dimensions	96mm(W) × 96mm(H) × 100mm(D)
