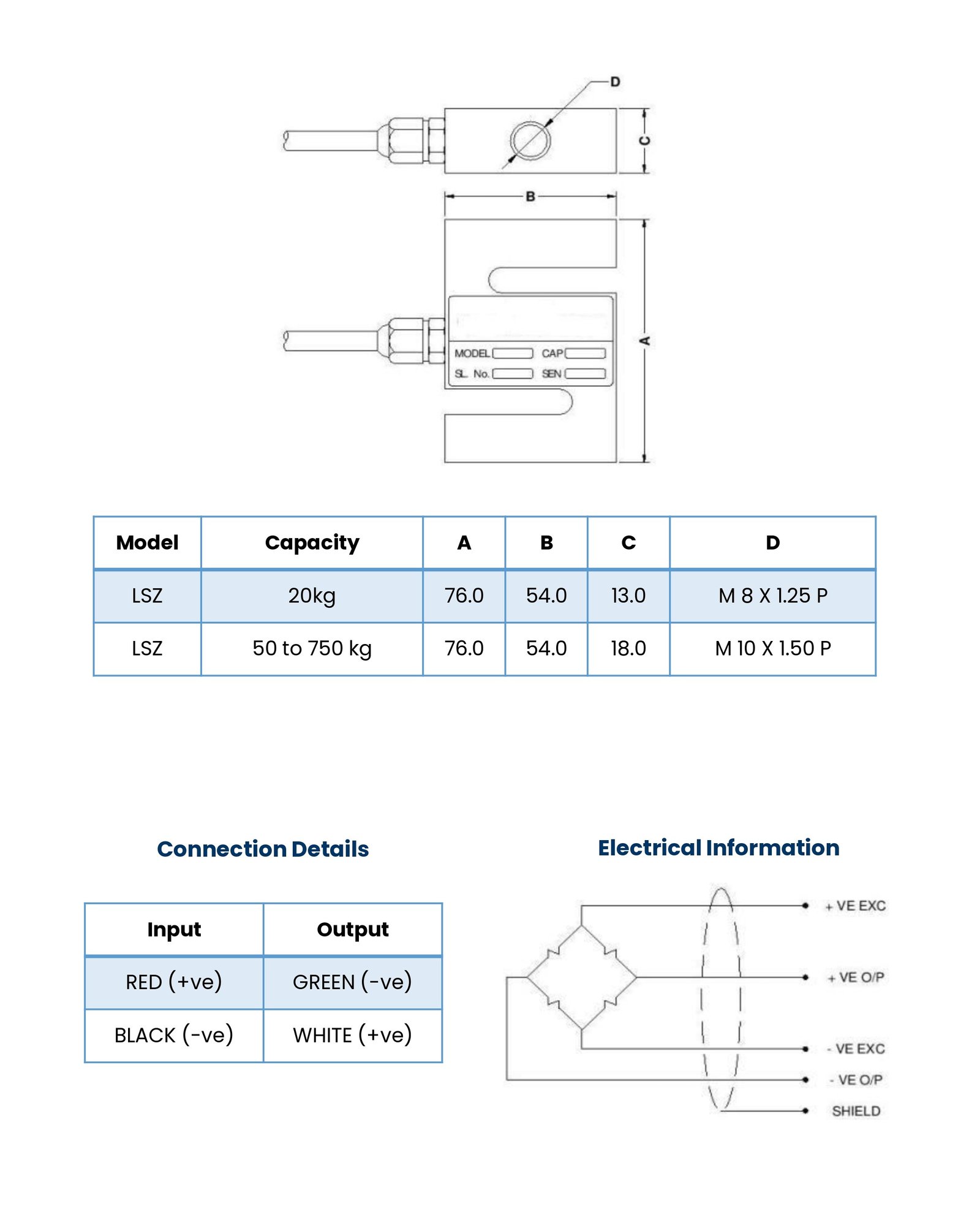

| Model |
LSZ – 21, LSZ – 51, LSZ – 12, LSZ – 22, LSZ – 32, LSZ – 52,
LSZ - 751
|
| Rated Load Capacity (kg) |
20, 50, 100, 200, 300, 500, 750 |
| Rated Output Sensitivity (mV/V) |
2mV/V ± 0.3% |
| Input Resistance (Ω) |
350 ± 10 |
| Output Resistance (Ω) |
350 ± 5 |
| Excitation Voltage (V) |
10 to 15 Volts DC/AC (RMS) |
| Non-Linearity (%FS) |
± 0.025% |
| Hysteresis (%FS) |
± 0.025% |
| Creep (%FS) |
0.1% |
| Non-Repeatability (%FS) |
± 0.05% |
| Zero Balance (%FS) |
2% |
| Operatable Temperature Range (°C) |
-20°C to 65°C |
| Compensated Temperature Range (°C) |
0°C to 55°C |
| Temperature Effect on Zero (%FS/10°C) |
0.005 |
| Temperature Effect on Output (%FS/10°C) |
0.005 |
| Over Load Rating, Safe (%FS) |
150% |
| Power Load Rating (Ultimate) (%FS) |
200% |
