| Specification | Value |
|---|---|
| Model | WTL |
| Capacities | 10, 25, 30, 50, 100 kg |
| Full Scale Output (F.S.) | 2mV/V |
| Output Tolerance | ≤ ± 1% F.S. |
| Combined Error | ≤ ± 0.5% F.S. |
| Creep After 30 minutes | ≤ ± 0.06% F.S. |
| Zero Load Output | ≤ ± 1% F.S. |
| Thermal Drift | ≤ ± 0.01% F.S. |
| Input/Output Impedance | 350±10 Ω |
| Isolation Resistance | ≥10 GΩ |
| Nominal Supply Voltage | 10V DC |
| Maximum Supply Voltage | 15V DC |
| Compensated Temperature Range | Up to 50°C |
| Safe Overload | 300% F.S. |
| Ultimate Load | 300% F.S. |

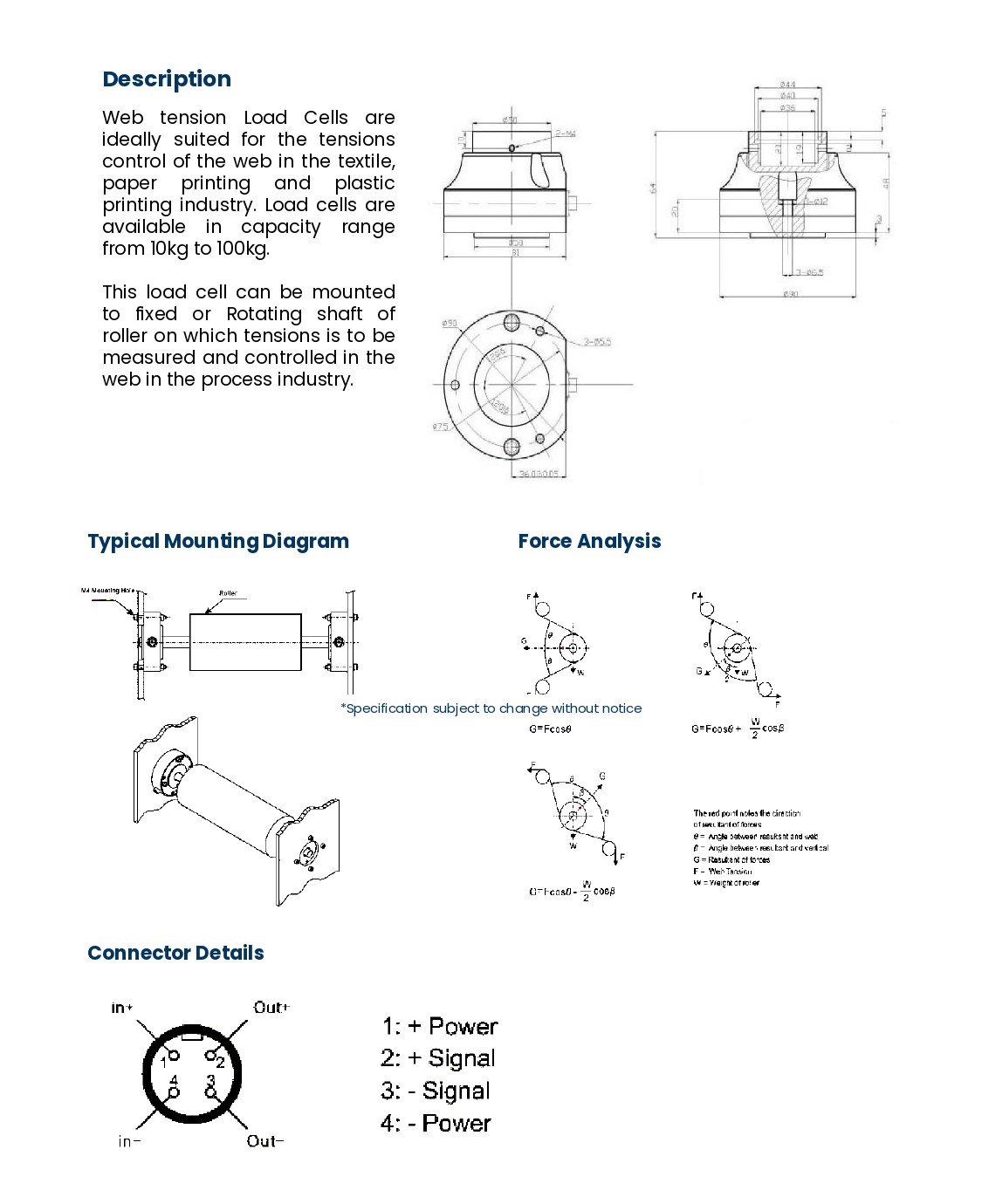

Diagram
