| Specification | Value |
|---|---|
| Material | PVC |
| Working Voltage Range | 8-32 VDC |
| Supply Voltage | 24 V |
| Output | Single Ended Square Pulse |
| Power Consumption | ≤ 20 mA |
| Operating Temperature | -40°C to 125°C |
| Storage Temperature | -40°C to 140°C |
| Frequency (Max) | 12 kHz |
| Clearance Between Sensor and Gear | 1 ± 0.5 mm |
| Wiring Details |
RED → Power + GREEN → Ground - YELLOW → Signal + |

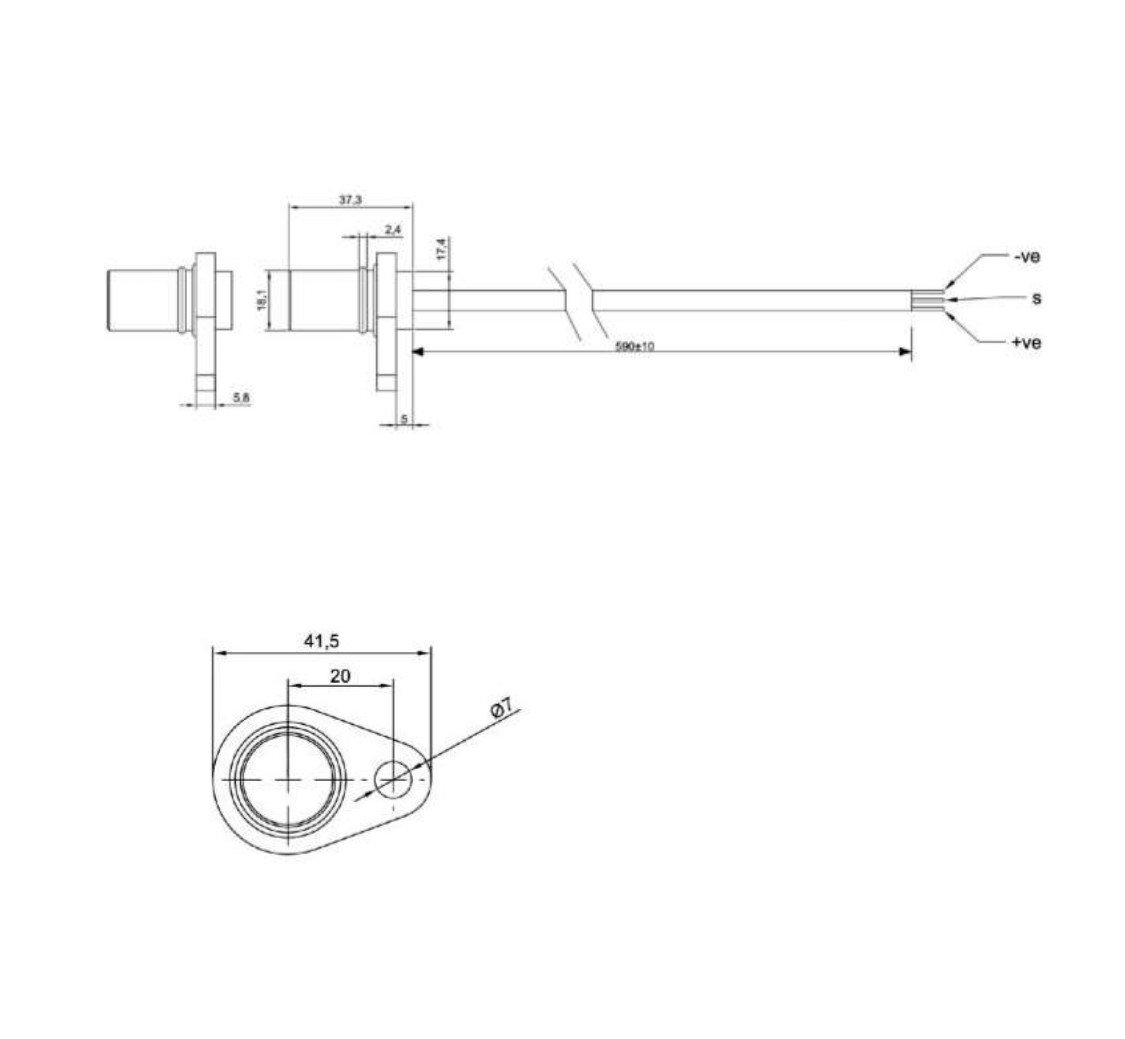

Diagram
